Hidden Fixing
Boards hook onto clips — no screw heads on the visible face, cleaner lines.
Cladding
Co-Ex Cladding
A cladding system, not just a panel: co-extruded WPC boards with a hidden clip rail, so façades and boundary walls go up without a single visible screw.
Cladding
Specifications
Standard production specification. Custom dimensions, lengths and colours are available on request.
- Panel Sizes
- 174×21 / 219×28 / 219×26 mm
- System
- Hidden clip + starter / corner trims
- Ventilation
- Open-jointed, ventilated cavity behind
- Standard Length
- 2.2 / 2.9 / 3.0 / 4.0 m (5.8 m on request)
- Surface Treatment
- Brushing / embossing / 3D deep embossing
- Minimum Order
- One 40ft container (mixed profiles allowed)
- Lead Time
- 15–25 days after order confirmation
- Certification
- ISO 9001 / 14001 / 45001 · FSC · CE · RoHS · REACH
Key Features
Engineered for outdoor performance
Water & Mould Proof
The co-extruded shield keeps rain out — no swelling, no mould, no painting.
Ventilated Cavity
An air gap behind the boards dries the wall and improves comfort in hot climates.
Matches The Deck
The same colour families as the decking — terraces and façades read as one design.

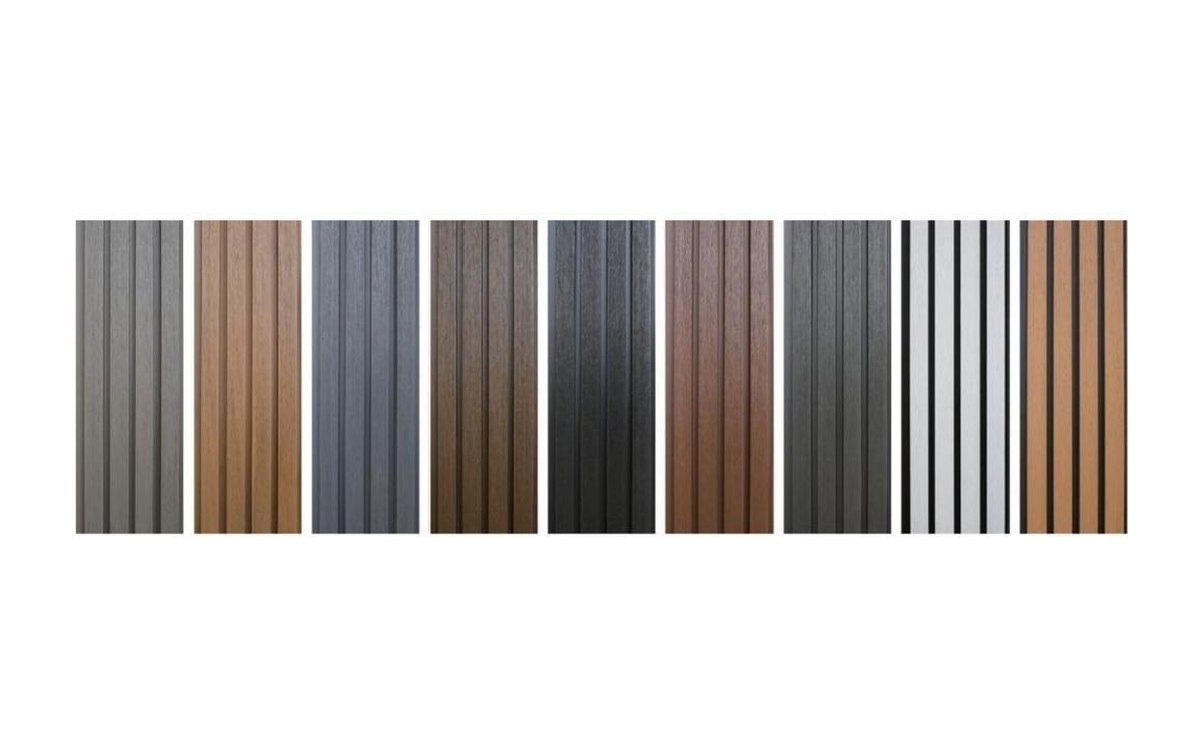

Product Gallery
Appearance, surface and colour
Reference images provided by the manufacturing plant — profiles, colours and installed appearance.
Technology
How it is made
A ventilated wall cladding system works in layers: a bracket rail on the wall, a clip track, and boards that hook on and lock. The gap behind the boards is deliberate — it lets the wall dry and keeps heat off the building. Because the boards are co-extruded, the visible face carries the colour and grain while the core stays structural. Hidden clips mean thermal movement is taken up silently, and any single board can be replaced without dismantling the wall.
Explore More
Related products
Ready to specify
Send us your project details
Tell us the application, target dimensions and quantity — we will reply with a recommendation, samples and trade terms.
