Privacy With Airflow
Screens the sight line without blocking the breeze — comfortable seating behind them.
Screen
Screen & Partition
Modular lattice panels and posts: privacy where you want it, air and light where you need it — assembled from repeatable components rather than custom fabrication.
Screen
Specifications
Standard production specification. Custom dimensions, lengths and colours are available on request.
- Lattice Sizes
- 120×120 / 150×150 / 200×200 mm
- System
- Panels + posts + U-channel end caps
- Panel Length
- Standard lengths, cut to project height
- Standard Length
- 2.2 / 2.9 / 3.0 / 4.0 m (5.8 m on request)
- Surface Treatment
- Brushing / embossing / 3D deep embossing
- Minimum Order
- One 40ft container (mixed profiles allowed)
- Lead Time
- 15–25 days after order confirmation
- Certification
- ISO 9001 / 14001 / 45001 · FSC · CE · RoHS · REACH
Key Features
Engineered for outdoor performance
Modular Assembly
Repeatable panel/post geometry installs fast on repeatable layouts.
Sun Shade Control
Lattice density chosen per orientation — from dappled shade to full privacy.
Same Material Family
WPC through and through — colour and weathering match the decking and cladding.
Product Gallery

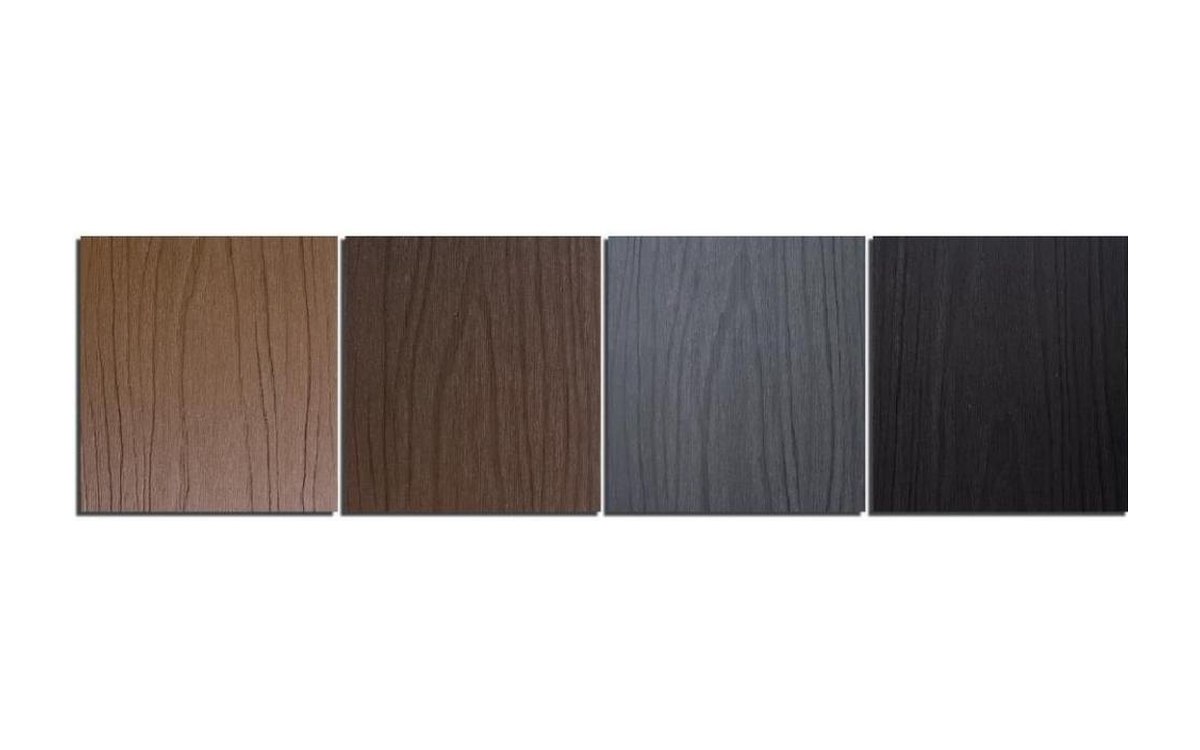

Appearance, surface and colour

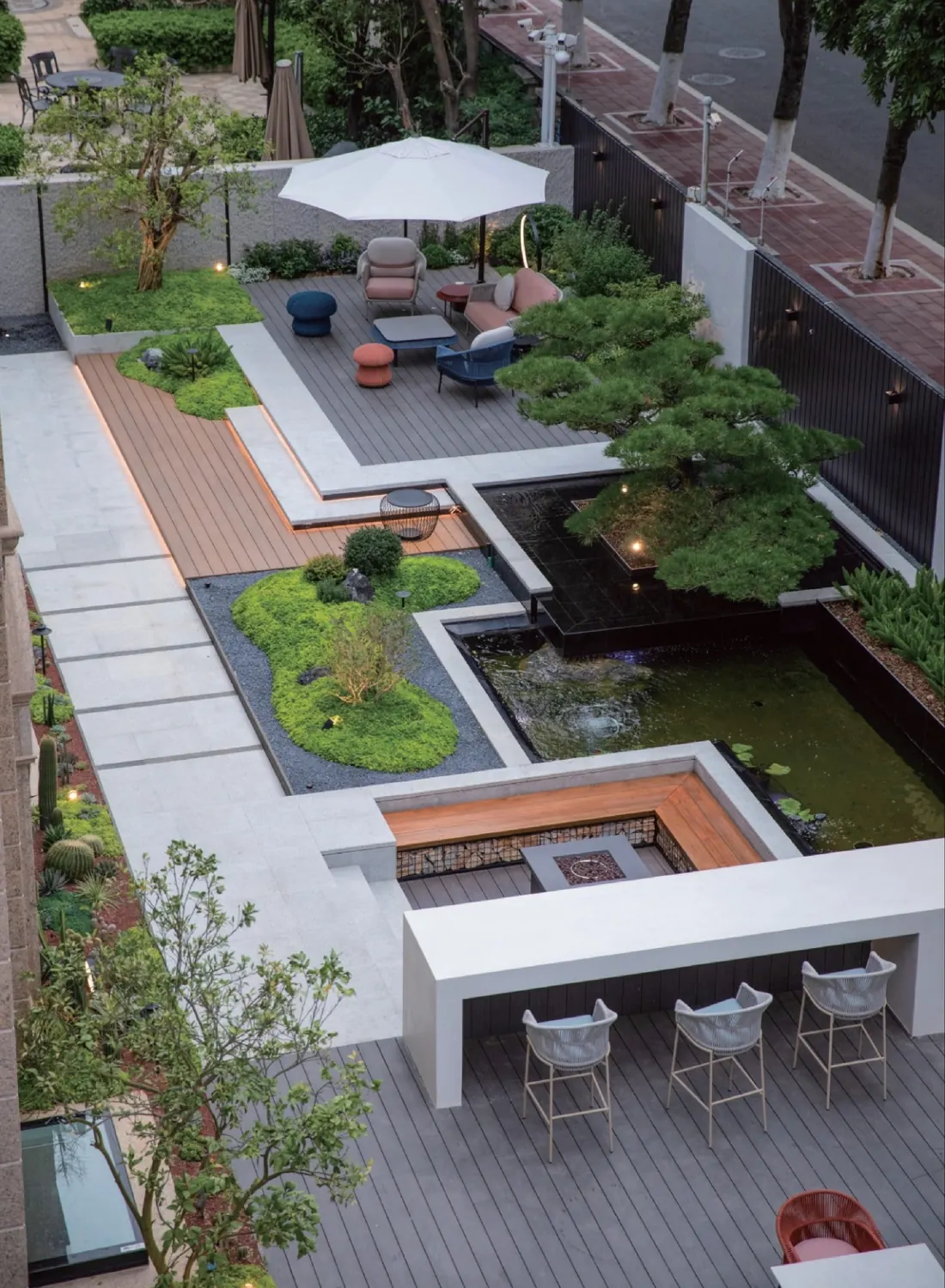

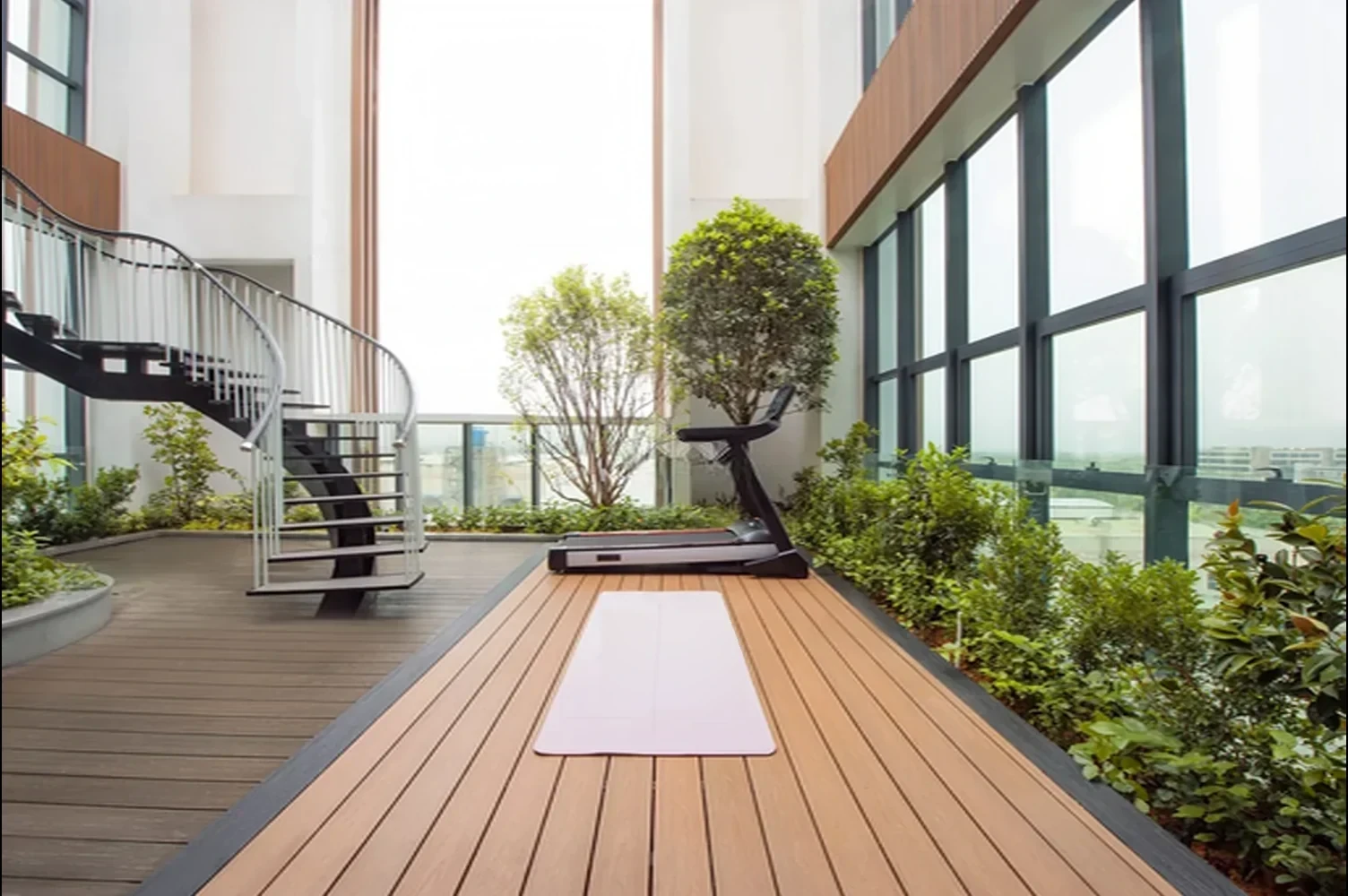

Reference images provided by the manufacturing plant — profiles, colours and installed appearance.
Technology
How it is made
A screen system is geometry, not carpentry: pick the lattice opening (120, 150 or 200 mm square), the panel height and the post spacing, and the same parts cover everything from a balcony privacy screen to a full-height façade veil. Posts are set on galvanised brackets, panels slide into U-channel end caps, and everything comes apart again for reconfiguration or replacement. Because every component is WPC, the screen weathers at the same rate as the decking beside it.
